20WATT,30WATT,50WATT                                  100WATT,200WATT,300WATT





Maxphotonics Co.,Ltd is a professional manufacturer and supplier of various laser equipment which is of high quality, high speed, high power and high performance. If you are looking for wholesale price mopa width tunable fiber laser source 20WATT,30WATT,50WATT,100WATT,300WATT,500WATT,1000WATT,2000WATT,6000WATT., we must be your best choice as we now have such...

Quick Detail:

Place of Origin: Shenzhen, China (mainland) Brand Name: Maxphotonics
Model Type: MFPT-30 Power: 30w
Laser Source Fiber laser Operation Voltage: 24VDC
Certificate: ISO 9001:2008、CE、FDA、EMC
Warranty: 2 years


Packaging & Delivery:

Packaging Detail: Carton box or Wooden case for optional
Delivery Detail: 2 weeks after receiving the payment


Description of MOPA laser:

The MFPT-Series pulse Ytterbium fiber laser is one of the most advance products of MAX, and it is revolutionary to integration of the high-speed high-resolution laser marking system.

The MFPT-Series pulse Ytterbium fiber laser edges out traditional intelligent lasers with diode pumped crystal, includding neodymium (Nd) : YAG laser. it uses the structures of the master oscillator and high power fiber amplifier.

The MFPT-Series pulse Ytterbium fiber laser has power consumption and use pratical and durable design, so it suits lab and market use. Boasting compact structure and highly integrated system, it is embedded with a computer system, a laser control system and a motion control system.

The MFPT-Series pulse Ytterbium fiber laser transmits periodical pulse trains with the wavelength of about 1060nm and peak power up to 8KW. This laser requires an external 24VDC power supply, and the operation parameters of the laser are set by the 25PIN control interface. The special controller coupled with the customer can be used for hand held laser.

The MFPT-Series pulse Ytterbium fiber laser is an ideal high power source for the laser marking industry. The laser with non-isolated optical head is mainly developed for marking of low reflective material (like plastics, wood, paper, etc.), and used to mark partial metals with low reflectivity.



Main Features of MOPA laser:

High reliability

Adjustable pulse width

Adjustable repetition frequency

Laser output light isolation

High anti-reflection protection

Long lifetime & maintenance-free

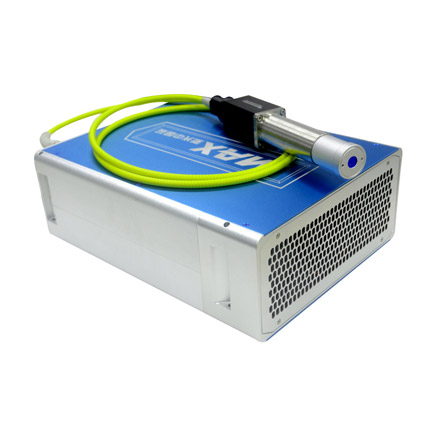

Low Cost Max photonics tunable 20W 30W MOPA fiber laser source (MFPT-30).jpg


Technical Parameters of MOPA laser:

Parameters Unit Data Data Data Data Data
Type   MFPT-10 MFPT-20 MFPT-30 MFPT-50 MFPT-100
Central Emission Wavelength nm 1064±4 1064±4 1064±4 1064±4 1064±4
Polarization   Random Random Random Random Random
Average Output Power W 10 20 30 50 100
Frequency at Full Power KHz 45-1000 45-1000 45-1000 45-1000 45-1000
Frequency turning Range KHz 1-1000 1-1000 1-1000 1-1000 1-1000
Singl Pulse Energy  mJ 0.5-0.6 0.6-0.8 0.8-1.0 0.8-1.0 0.8-1.0
Beam Quality m2 <1.4 <1.3 <1.4 <2.0 <2.0
Beam Diameter mm 6-9 6-9 6-9 6-9 6-9
Power Reliability % <5 <5 <5 <5 <5
Pulse Width ns 4-260 2-200 4-260 4-260 4-260
Output Power Tunability % 5-100 5-100 5-100 5-100 5-100
Working Voltage VDC 24 24 24 24 220VAC
Power Consumption W(20℃) 100 160 140 160 250
Fiber Length m 1.9-3.5 1.9-3.5 1.9-3.5 1.9-3.5 1.9-3.5
First Pulse Availability Y/N   N
Cooling   Air Cooling Air Cooling Air Cooling Air Cooling Air Cooling

(All parameters is believed to be accurate and is subject to change without notice.)


Isolator :

Isolator mopa.png

Laser Module:

laser module mopa.png


MOPA fiber laser applications:

MAX Mopa fiber laser source mostly used for laser marking machine, MOPA fiber laser systems will help you achieve the cleanest and most high-quality markings, techings, engravings in the industry.


♦ Colorful marking on Stainless Steel and Titanium

♦ Semi-conductor & electronics industry applications

♦ Excellent marking effect on plastic or other sensitive material

MOPA Laser Marker Application 0.jpg



Maxphotonics highly recommends you to read the following operation points before the laser operation;

1. Make sure the well-grounded equipment enclosure, which is because the interruption of any point in the ground loop may lead to the personal accidental injury.

2. Please make sure that the power supply connected to the equipment has been connected with the protected area.

3. In order to further reduce the fire danger, the line fuse to be replaced (if necessary) can only be the same type and same grade, and other fuses or materials shall not be replaced.

4. Make sure that the input AC voltage of the laser is the normal AC mains voltage (220v/50Hz AC) and the wiring is correct, which is because any wrong wiring way may lead to the personal or equipment damage.

5. There are no parts which can be maintained by the operator, and all maintenance operations shall be completed by the professionals of Maxphotonics.

6. Please don't remove the enclosure, arbitrarily disassemble and assemble the laser and damage the relevant labels, which will lead to the electric shock or scorching. Any product disassembled privately will no longer enjoy the warranty right.



Product Details

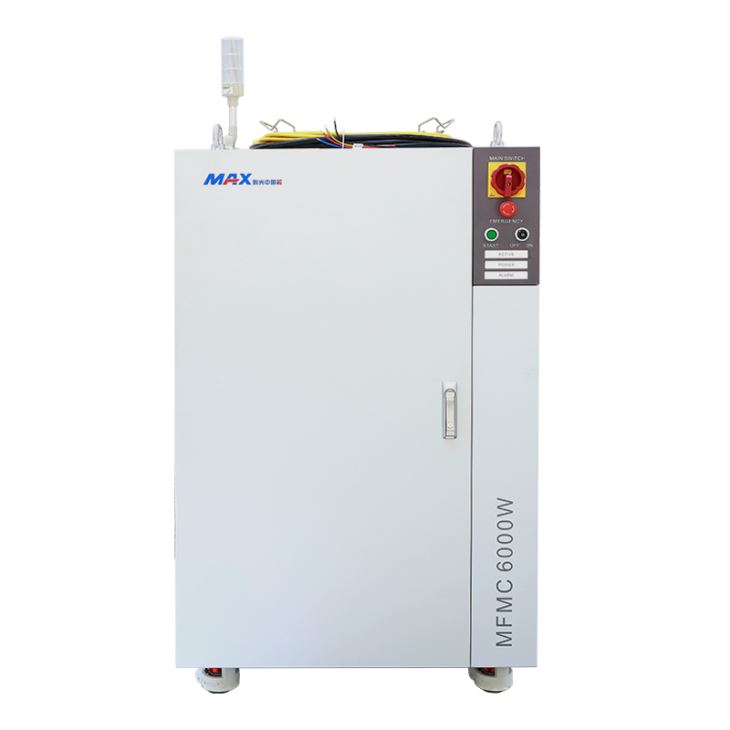

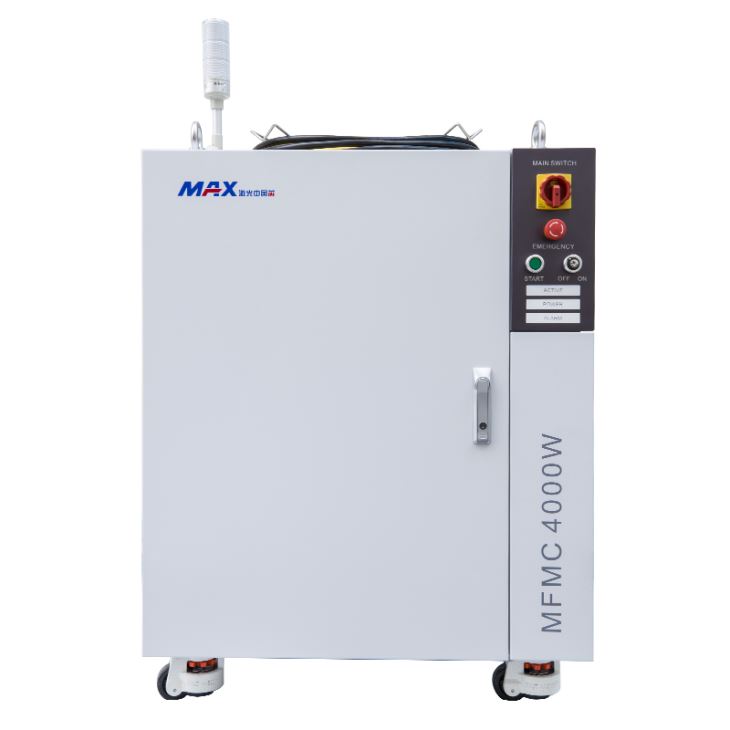

MFMC Series CW Fiber Laser product sprovide a wide range of wavelength from 1060nm to 1100nm.The lasers are water-cooled and maintenance-free and with a wall plug efficiency of more than 25% and

deliver high efficiency, high reliability and high performance.Maxphotonics' MFMC Series CW Fiber Laser Series are Class 4 laser products and are designed and tested with safety.


Optical Characteristic Parameters



General Characteristic Parameters:



Water Cooling Condition:




To cut a variety of metal materials, including Carbon Steel , Silicon Steel, Stainless Steel, Aluminum Alloy, Titanium Alloy, Galvanized Sheet, Pickling Plate, Aluminum Zinc Plate, Cooper.
